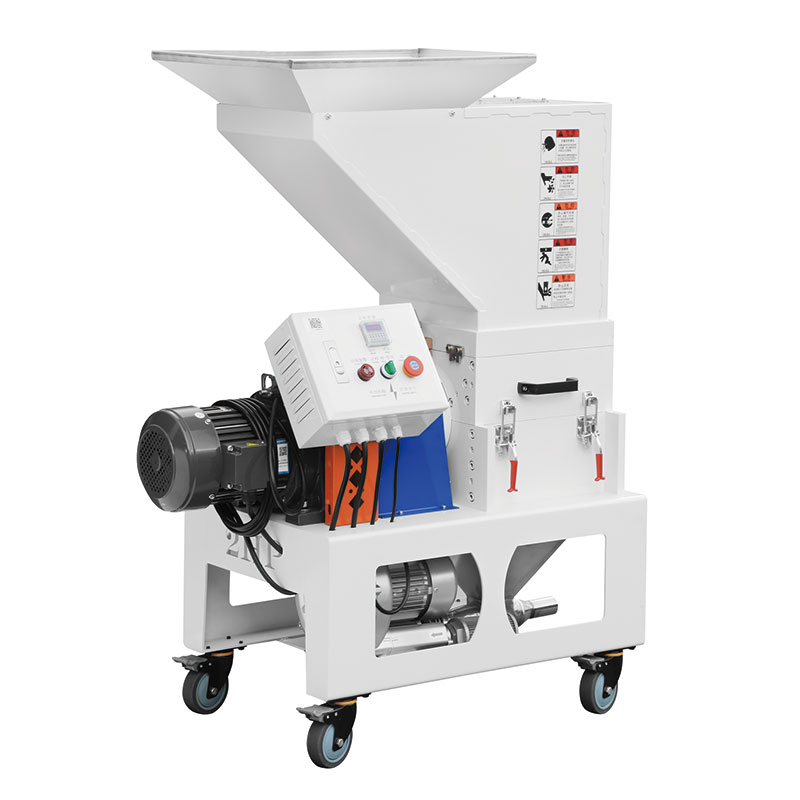

Slow Speed Machine Side Crusher Series

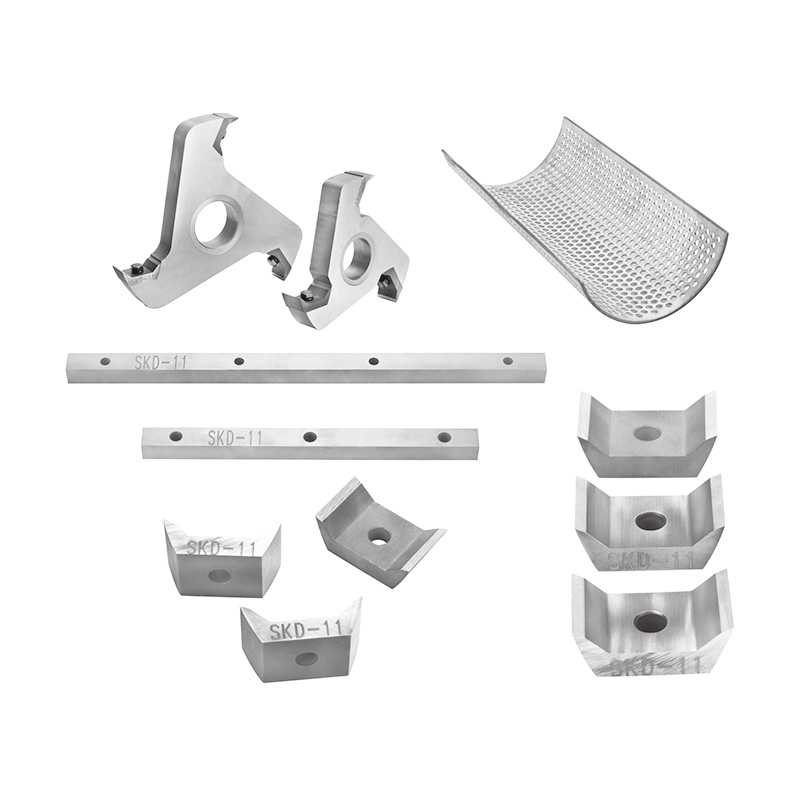

- For crusher knives, we adhere to providing customers with the highest quality products: all the blades of the crusher are produced by CNC machine tools and precision grinders. From the selection of raw materials to rough machining, fine machining, quenching, grinding and more than a dozen processing techniques, strict process control is used to ensure the quality of each processing of the tool.
Product Description
For crusher knives, we adhere to providing customers with the highest quality products: all the blades of the crusher are produced by CNC machine tools and precision grinders. From the selection of raw materials to rough machining, fine machining, quenching, grinding and more than a dozen processing techniques, strict process control is used to ensure the quality of each processing of the tool.
 |  | |

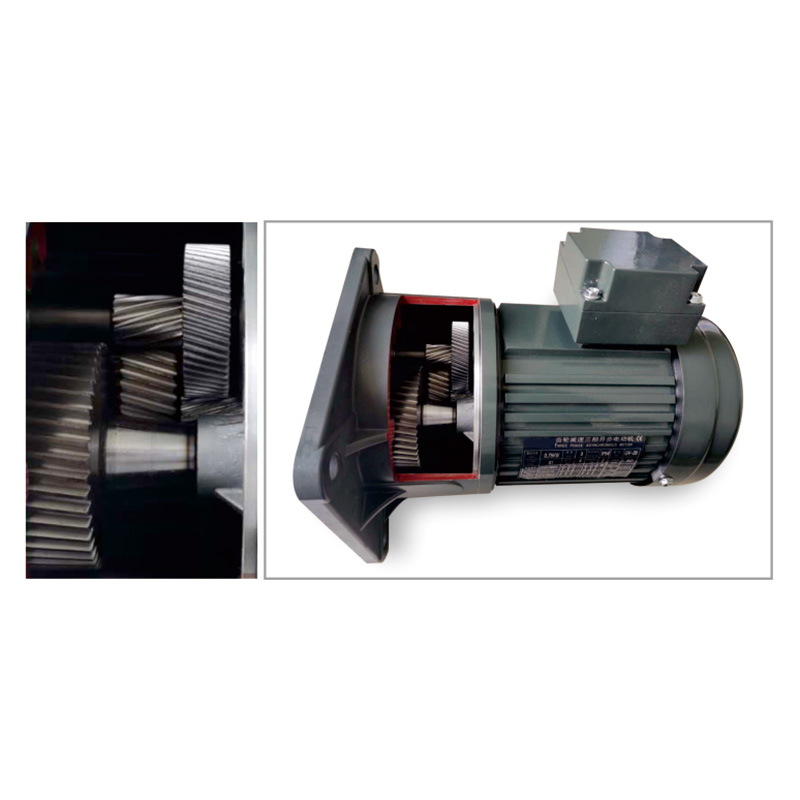

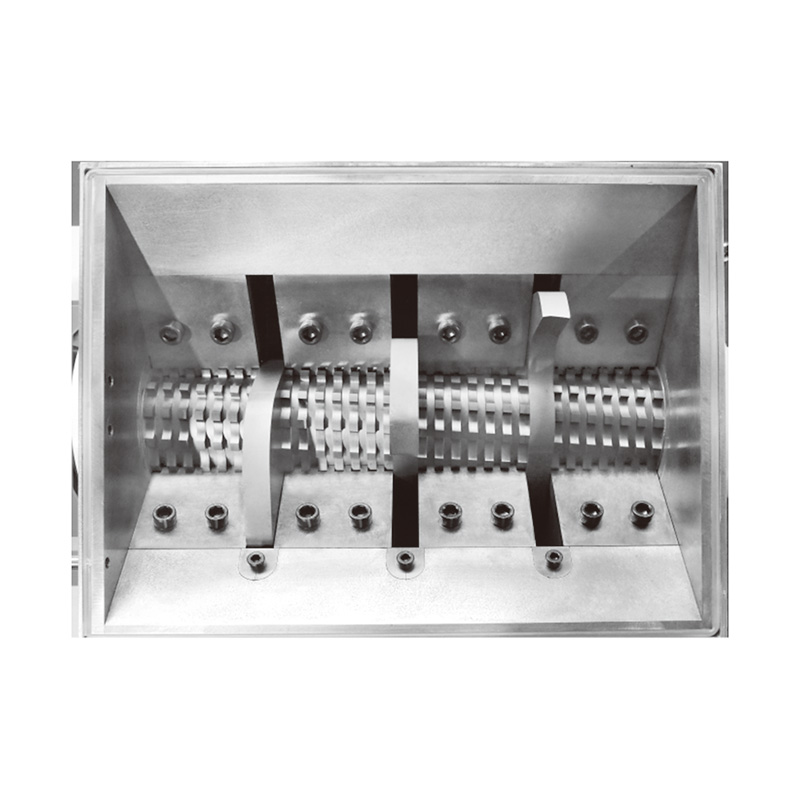

Knife Bin Diagram | Gear motor |
Technical Parameters
| Motor power | Speed | S knife rotation diameter | S knife quantity | Pineapple Knife quantity | Number of fixed knives | Crushing chamber diameter | Feeding port size | Body size | Machine weight | ||
| 1.1 | 23 | 210 | 2 | 3 | 6 | 250*250 | 480*415 | 930*450*1230 | 210 | ||
| 1.5 | 23 | 270 | 2 | 3 | 6 | 310*310 | 500*480 | 1030*500*1280 | 295 | ||
| 2.2 | 23 | 270 | 3 | 4 | 8 | 420*310 | 580*450 | 1200*500*1300 | 340 | ||
| 3.7 | 23 | 35 | 3 | 4 | 8 | 440*400 | 660*580 | 1200*560*1460 | 470 | ||
| 4 | 23 | 375 | 4 | 5 | 10 | 620*440 | 820*620 | 1400*600*1550 | 570 | ||
The above parameters are for reference only,the actual product shall prevail.
